PCAP Kiosk Screen

Category: Brand:
  • 24/7 Usage
  • Built-in Speakers
  • Eco Power Timer
  • Surface Plasma Treatment
  • 10 Touch Points
  • IPS Panels
  • Adaptable Orientation
  • LED Backlight

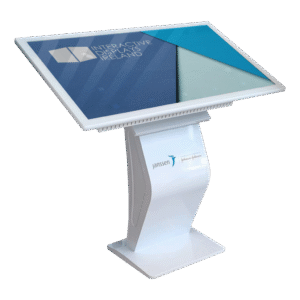

PCAP Kiosk Screen

The PCAP Kiosk Screen combines advanced projected capacitive touch technology with a sleek, modern kiosk design built for commercial environments. With 10-point multi-touch, IPS panels, and edge-to-edge glass, it offers a highly responsive and intuitive user experience that feels just like a giant tablet.

PCAP-Kiosk-screen-Touchscreen-Kiosk-digital-signage-screenBuilt for both style and durability, it features a tempered front, aluminium bezel, and plasma-treated surface for clarity and longevity. With an adaptable orientation, LED backlight, and ergonomic layout, the kiosk display fits seamlessly into self-service setups, wayfinding stations, and interactive spaces.

For rental options and managed touchscreen solutions, visit rentascreen.ie and screenfusion.ai.

Applications for PCAP Kiosk Screen Include:

  • Interactive kiosks in shopping centers

  • Touch-enabled wayfinding displays

  • Classroom and training room solutions

  • Self-service terminals in hospitality or retail

  • Boardroom and collaborative office environments

Specifications Specifications Specifications Specifications Specifications Specifications
Specifications Specifications Specifications Specifications Specifications Specifications

Additional information

Panel

Resolution: 1920×1080
Aspect Ratio: 16:9
Brightness (CD/M2): 450
Colour: 16.7M
Viewing Angle: 178°
Contrast Ratio: 5000:1
Footprint: 800×500

AV Inputs

Video: HDMI, VGA, BNC
Control: RS-232
Audio: Audio Socket (3.5mm)
Speaker Type: 2W, 5Ω (x2)
Input Voltage: AC110~240V (50Hz~60Hz)

Environmental

Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 60°C
Operating Humidity: 10% to 80%
Storage Humidity: 5% to 95%

Touch

Touch Technology: Projected Capacitive
Touch Points: 10
Glass hardness: 7H minimum

Computer

CPU: Intel® Atom™ (Quad-core) x5-Z8350 Processor (2M Cache, up to 1.92 GHz)
RAM: 4GB (DDR3L-RS 1600MHz)
Instruction set: 64-bit
Graphic Engine: Intel® HD Graphics 400 (8th Gen, Supports DirectX11.2, OpenGL4.4 and OpenCL 2.0)
Internal Memory: 64GB
USB: 2 x USB 2.0
LAN: 10/100/1000M Ethernet
Wi-Fi: 802.11b/g/n
OS: Android /Windows

Accessories

Included:Remote Control, User Manual, Power Cable, USB to USB Cable, Wi-Fi Aerial
Optional:Special Wall Mount, Floor Stand/Trolley, Ceiling Mount, Table Stand

Available Sizes

  • Model: MOY-43PCAPKS
  • Display Area: 942.5×530.5
  • Unit Size: 1048.9x1246x534.25
  • Package Size: Box 1: 1003x678x435 Box 2: 1180x772x230
  • Net Weight: 66.55kg
  • Gross Weight: 77.25kg
  • Power Consumption: 65watts
  • Model: MOY-50PCAPKS
  • Display Area: 1076×606
  • Unit Size: 1186x1285x599.4
  • Package Size: Box 1: 1003x678x435 Box 2: 1350x865x260
  • Net Weight: 73.05kg
  • Gross Weight: 85.50kg
  • Power Consumption: 75watts
  • Model:MOY-PCAP55KS
  • Display Area: 1211×682
  • Unit Size: 1319.6x1320x660.2
  • Package Size: Box 1: 1003x678x435 Box 2: 1480x950x250
  • Net Weight: 81.60kg
  • Gross Weight: 95.60kg
  • Power Consumption: 85watts
