HAND SANITISER NETWORK ANDROID ADVERTISING DISPLAYS

22” HAND SANITISER NETWORK ANDROID ADVERTISING DISPLAYS

contactless Hand Sanitising station With Integrated Commercial Screen

(Other sizes available on request)

Self-ordering touch screen solution for quick service restaurants with integrated QR code scanner and receipt printer

Contactless Display Solution

Automatic dispensing

Easy Sanitiser Refill

Online CMS Updates

Robust Steel Enclosure

Sanitiser Level Indicator

24/7 Commercial Grade

Compact and Lightweight Design

Integrated Android Media Player

Removable Tray

Integrated speakers

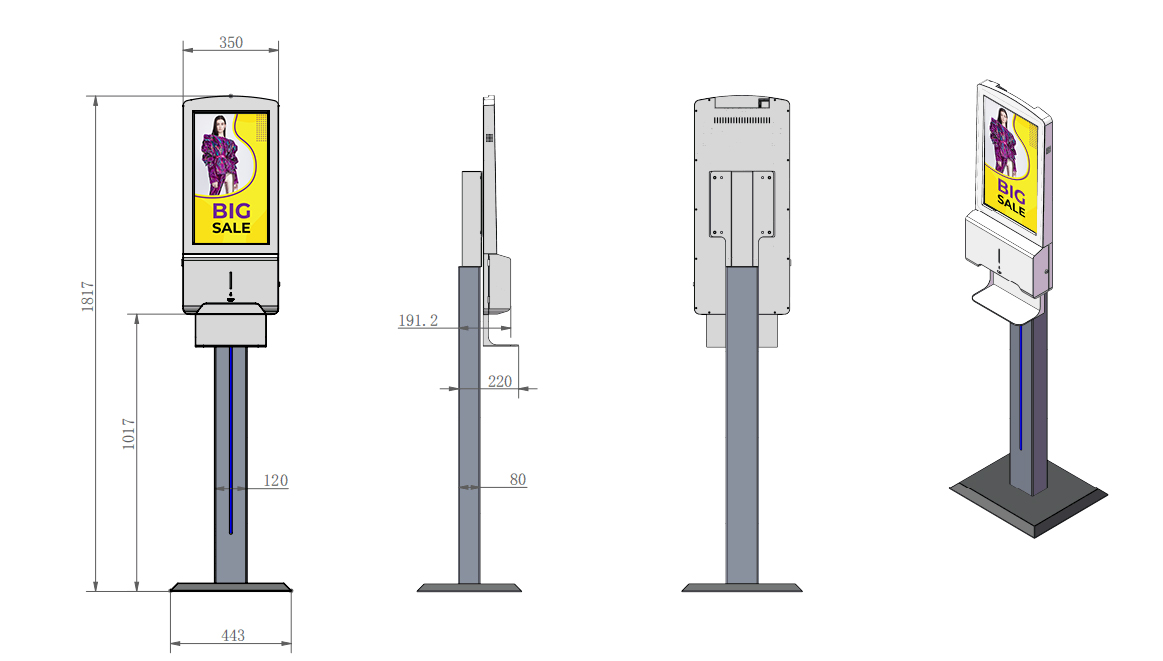

Optional Floor Stand

Lifetime Technical Support

3-Year Warranty

Hand Sanitising Digital Signage

In areas where hygiene is key, and hand washing facilities are not available, these displays are ideal. They combine a hand sanitising station with a versatile Digital Signage solution.

Contactless Usage

These displays are networked as standard so can be updated from our online CMS portal. They feature no external buttons or controls and have an automated on/off power timer to minimise contact following installation.

FREE Network Upgrade and 1 Year Subscription

We have packaged this display with a free network upgrade and 1 year subscription to our online CMS software. As you don’t have to touch the display to update it this is a truly contactless solution. You can also purchase 3 additional year’s subscription at the point of purchase or make a one off payment for a lifetime licence.

Fully Automated Dispensing

The fully automated design removes the need to touch the dispenser, simply place your hand under the dispenser and a measured dose of sanitiser will be dispensed. The dispense valve is non-spray, non-clog and non-drip

Robust Steel Enclosure

This solution features a full metal enclosure making it perfect for any commercial or public environment, especially in locations where impact is a concern.

Safe Tank Capacity

Most standard hand sanitiser stations have a capacity below one litre; this is because it reduces the risk of evaporation caused by larger tanks. This is important because as the sanitiser evaporates the alcohol content reduces – decreasing the effectiveness of the sanitiser.

24/7 Usage

This is a true commercial grade solution. Built using a commercial grade LCD panel and components it is designed to be in constant use.

Online Content Management System

Using our user-friendly cost-effective software solution you can combine multiple media zones (images, videos, webpages etc.), social media feeds, scrolling text and RSS feeds for latest news.

Safe Maintenance

The easy front access door to allows you to conveniently re-fill the sanitiser tank however to carry out maintenance on the internal components you must remove the rear panel. This two-way access ensures that no electronics are exposed when the tank is being re-filled, preventing a potential fire hazard or any damage to the display.

Streamlined Enclosure

Designed to maximise the impact of content, these displays feature a sleek, narrow bezel. This is especially important when placing multiple screens together. The compact design also adds to the aesthetic and reduces strain on shelf edges.

Clear HD Resolution

Unlike DV-LED shelf-edge displays, this solution uses a high definition LCD panel to provide a clear image. This is essential for finely-detailed content, such as labels with small writing and QR codes, as well as producing the best results when displaying video.

Anti-Glare Coating

Shelf-edge displays must compete with bright lighting and being mounted at upwards-tilted angles, which can make small text on price labels difficult to read. To combat this, these displays feature a special anti-glare coating that diffuses reflections without reducing brightness.

SPECIFICATIONS

Full Specification

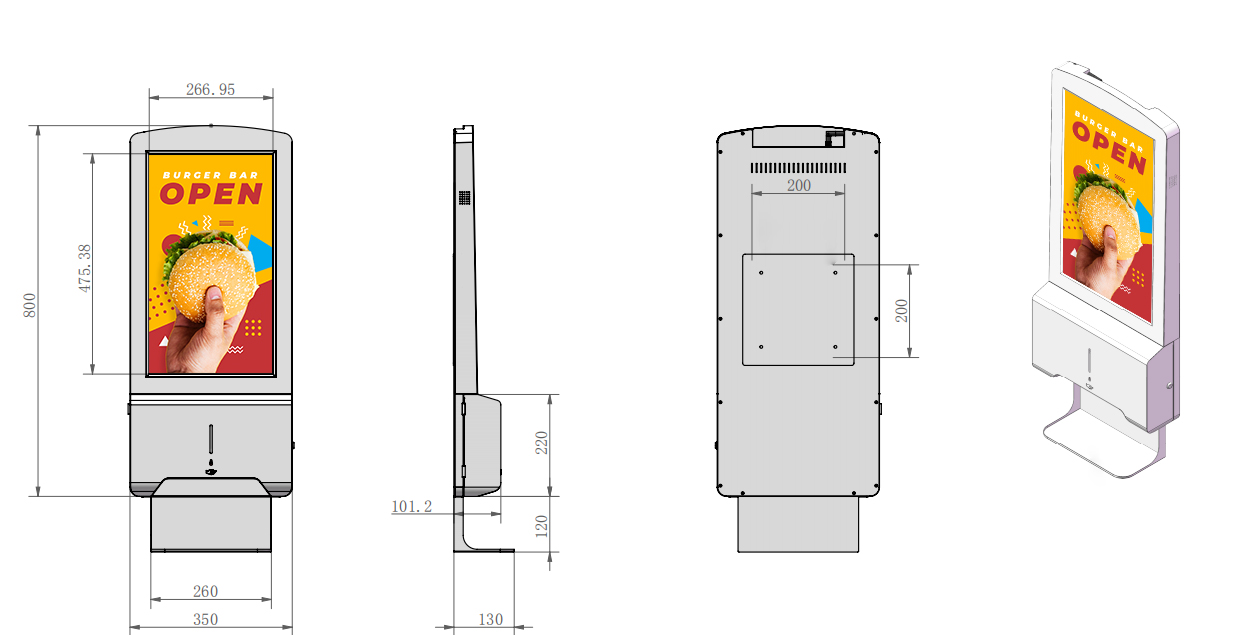

22 Inch – HS22A







Display Area

266.95×475.38

Unit Size (WxHxD mm)

350x820x101.2

Package Size (WxHxD mm)

435x885x181

Net Weight (kg)

11

Gross Weight (kg)

13

VESA

200×200





Panel







Resolution

1080×1920

Aspect Ratio

16:9

Brightness (cd/m²)

450

Colour

16.7M

Viewing Angle

178°

Contrast Ratio

5000:1

Response time

5ms

Lifespan (hours)

70,000

AV Inputs







Video

HDMI, VGA

Audio

Audio Socket (3.5mm)





Power



Power Consumption (W)

17

Power Input

AC110~240V (50Hz~60Hz)





Computer







Media Formats

Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)

Media Resolution

1920×1080/1080×1920

Internal Memory

6GB

CPU

Quad-Core Cortex-A17@1.61GHz

GPU

Mali-T760 MP4 @600MHz

RAM

2GB DDR3

ROM

8GB NAND

USB

USB2.0 HOST (x2)

LAN

10/100M Ethernet

Wi-Fi

802.11b/g/n

OS

Android 5.1.1

Graphic Engine

OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Dispenser







Capacity (ml)

700 (each dose 0.8-1)

Sensing Distance (cm)

5

Solution Type

Liquid or Gel

*Hand sanitising liquid or gel not included



Accessories







Included

Drip Tray, Scheduling Software, Remote Control, Key, User Manual

Optional

Floor Stand, Touch Screen Version, 4G Upgrade





Standards







Certification

CE, FCC & ROHS
