8” FACIAL RECOGNITION THERMOMETER DISPLAY
Contactless Temperature checking and Facial REcognition Solution with Software included
Protect staff and customers using our temperature checking, mask detection and facial recognition solution with software included
Facial Recognition Display
Anti-Vandal Glass and Mounting
Integrated QR Code Scanner
Integrated Receipt Printer
Easy Access for Maintenance
Optional Software Packages
PCAP Touch Screen
Anti-Vandal Glass and Mounting
Integrated QR Code Scanner
Integrated Receipt Printer
Easy Access for Maintenance
Optional Software Packages
Anti-Vandal Glass and Mounting
Integrated QR Code Scanner
Integrated Receipt Printer
Easy Access for Maintenance
Optional Software Packages
Automated Contactless Temperature Checking
Using Melexis thermal imaging technology, in conjunction with cooling fans to maximise accuracy, this complete solution can read a user’s temperature and display the results in 1.8 seconds, even if they are wearing a mask. The automated nature of this system not only efficiently reduces manual labour, but also means it is completely contactless, which is of paramount importance in today’s world.
High Security Facial Recognition
With 99.7% identification accuracy, this solution can also be used as a check in/out system for offices, warehouses and other secure locations. You can even create a whitelist and blacklist to control and restrict access, as well as recording all building entries. Adjust the identification security levels from using the photo on an ID card to high level military standard using a 3D face scan and body temperature check.
All-in-One Solution
This is a full turnkey system, comprising of a 24/7 IPS panel, dual-lens optical facial recognition cameras, a thermal imaging module, an indication light, optional RFID/NFC integration and even the software to control, record and monitor all the functionality.
Synchronise with Existing Systems
Using the connection interface, this solution can be integrated with existing door or ticketing systems. Using the software included, you can stipulate entry conditions such as an acceptable temperature range, mask checking and specific user entry or restriction.
Software Included
The software is included at no extra cost and can be easily installed on your own PC or server to maximise security. Create separate login accounts with varying privileges, for example an account can be created for a receptionist to only register visitors. Can also work offline if required.
Accurate Thermal Imaging
Using a Melexis dual-chip system, the thermal imaging module measures the ambient temperature as well as the user’s body temperature to maximise accuracy. The module also features a cooling fan to further improve the precision of the reading. The full sensor temperature range is -40°C to 85°C with an accuracy of ±0.3°C.
Strip-Light Indicator
When taking a temperature or mask checking reading, this acts as on-camera illumination for more accurate results. It also synchronises with the software to indicate acceptance (green) or rejection (red) based on user-defined conditions.
Fever Alarm
When a user’s temperature reading exceeds a stipulated temperature, a visual and audio alarm activate to alert the user that they have a fever. This feature can also be disabled if not required.
24/7 Commercial Grade
This is a truly commercial grade solution as it can be in constant use around the clock. This is ideal for 24/7 commercial locations like supermarkets and gyms, as well as corporate and warehouse settings when used as a clocking in/out system.
Mask Detection System
As well as reading body temperature, the system can also check if the user is wearing a mask if this is an entry requirement to your building. This feature can also be disabled if not required.
Mounting Options
As standard this solution comes with an adjustable desk mounted pole. Optional mounting options include: a flush fit or adjustable wall mount, a desk stand, or a floor stand. All stand options have a modern integrated blue LED light strip
Robust Metal Enclosure
To add to its commercial credentials, the enclosure is manufactured using aluminium rather than plastic as this is less likely to be damaged in locations such as warehouses and factory floors.
Optional Automatic Hand Sanitiser
If you are utilising the floor stand, you can also add on an optional hand sanitiser dispenser to provide an extra level of safety.
IC Card NFC Integration
The display has an NFC module integrated which supports IC cards for door entry. This feature can also be controlled and managed by the software that is included.
Full Specification
| 8 Inch – FR8A Panel | |||
Resolution | Display Area (mm) | Aspect Ratio | Brightness (cd/m2) |
| Colour 16.7M | Viewing Angle 178° | Contrast Ratio 5000:1 | |
Optical Camera | |||
Resolution | Type | Aperture Optimal Focus Range | White Balance Auto |
Thermal Imaging Module | |||
Optimal Reading Distance | Measurement Accuracy ±0.3°C | Measurement Range 10°C-42°C | Thermal field of view 32°Cx32°C |
Interface | |||
Network Module | USB Serial | Relay | Wiegand |
Software | |||
| Temperature Alarm Optional | Face Library 30,000 | Facial Recognition Security Level 1-4 | 1:N Facial Recognition Supported |
| 1:1 Face Comparison Supported | Firmware Upgrades Supported | ||
Mechanical | |||

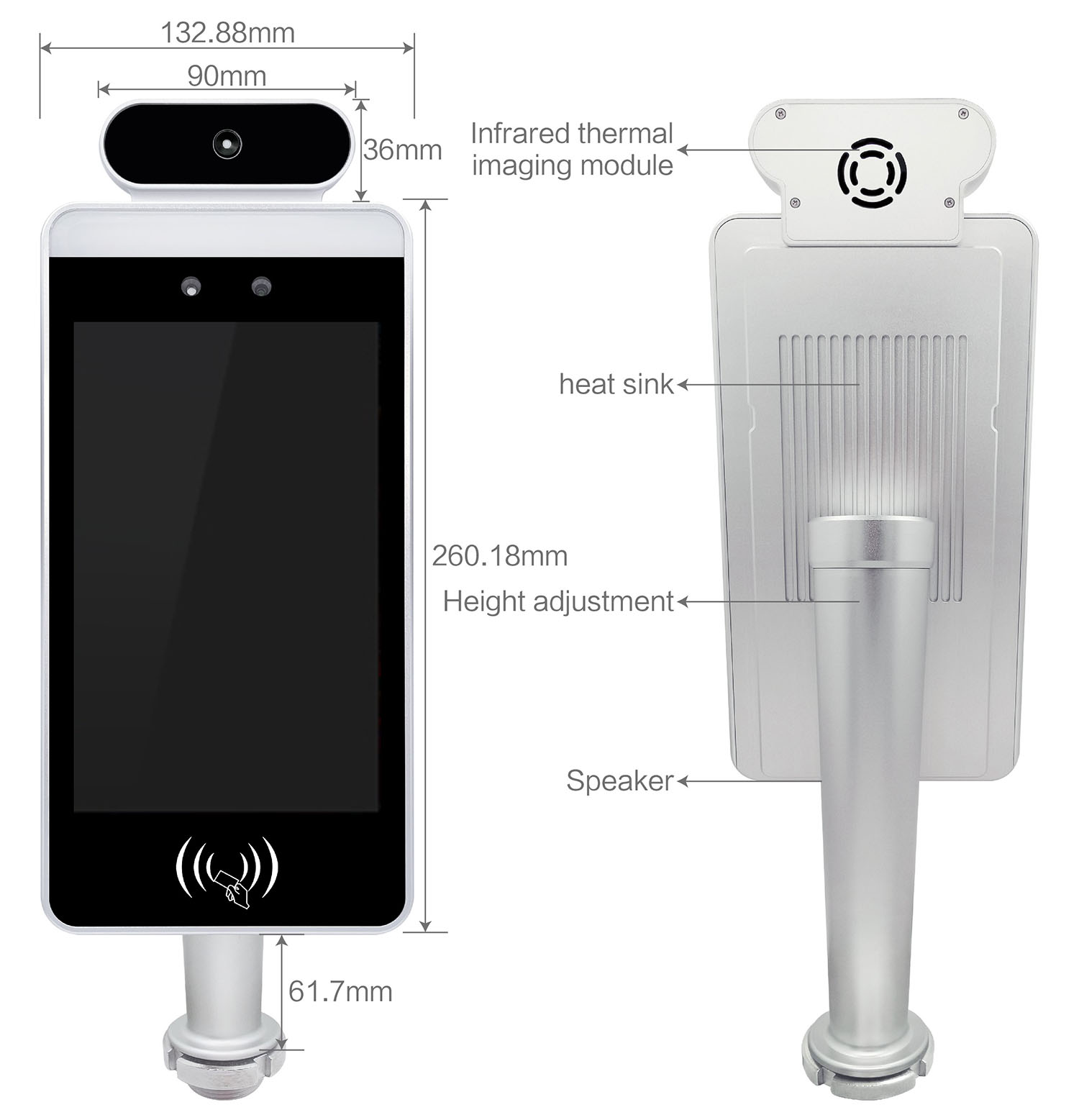

| Unit Size (WxHxD mm) 132.88×296.18×25 | Package Size (WxHxD mm) 180x430x120 | Package Size (WxHxD mm) 180x430x120 | Gross Weight (kg) 4 |
Computer | |||
| CPU RK3288 quad-core | Operating System Android 7.1.2 | Storage EMMC 8G | |
Audio | |||
| Speaker Type 2.5W, 4Ω (x2) | |||
Power | |||
| Power Consumption (W) 13.5 (Maximum) | Input Voltage DC12V | ||
Environmental | |||
| Operating Temperature 0°C to 50°C | Storage Temperature -30°C to 60°C | Operating Humidity 10% to 80% | Storage Humidity 5% to 95% |
Accessories | Included Desk Mounting Pole | Optional Wall Mount, Table Stand Base, Floor Stand | |
Standards | Certification CE, FCC & ROHS |
